About this project
This 90 MHz Electrically Small PCB Loop Antenna project, titled Design and Optimization of a Handheld Electrically Small 90 MHz PCB Loop Antenna for RFID Tag Applications Using CST Studio Suite, is organized around electrically small 90 MHz PCB loop design for handheld RFID use, including matching, near-field coupling and user/environment detuning. It is suitable as a starting point for model review, academic project work, comparative simulation and research-oriented extensions.

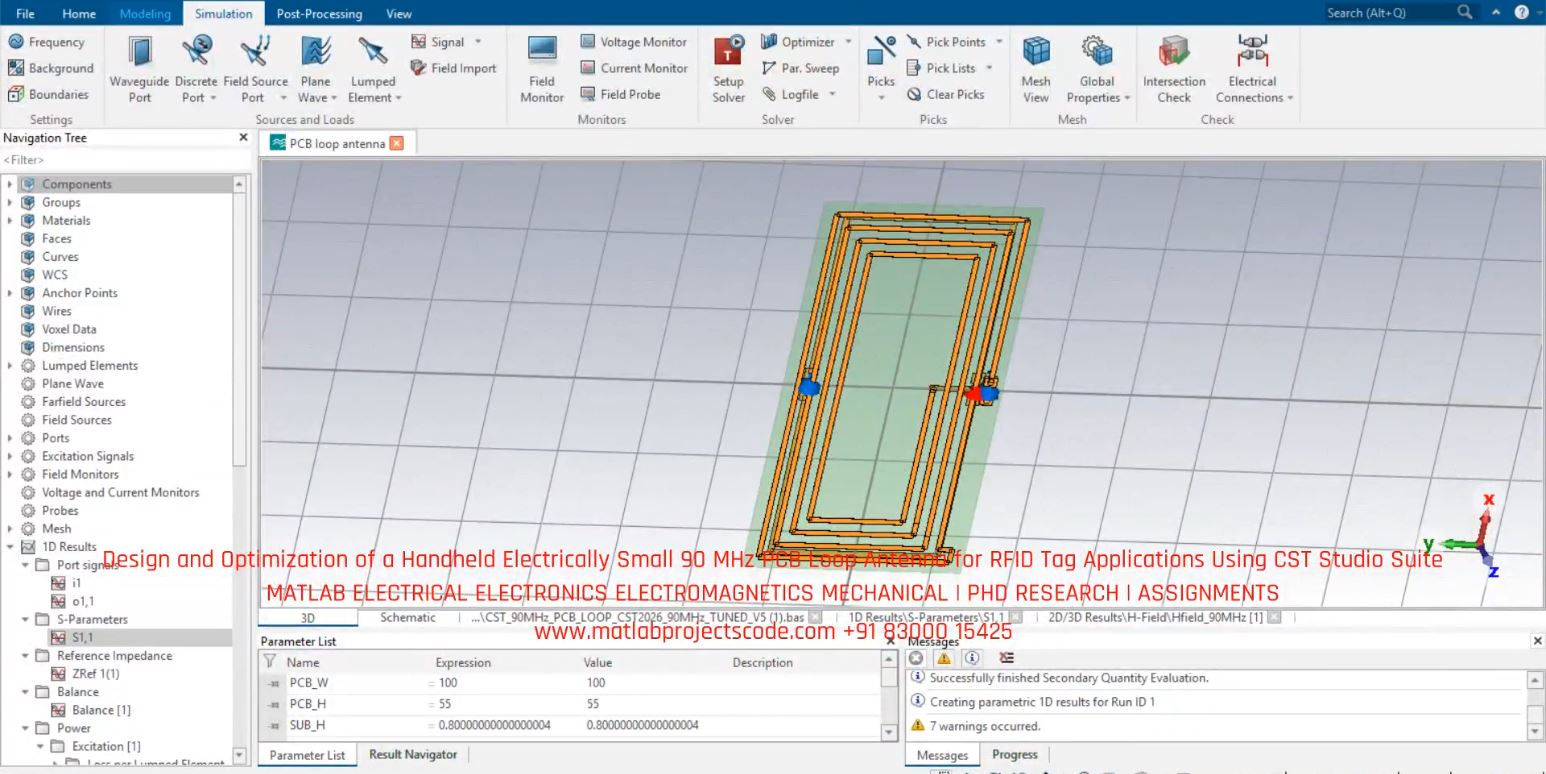

The simulation platform inferred for this project is CST Studio Suite. Because the exact model version and deliverable set can vary, the project video should be treated as the visual reference while the final file package is confirmed against the requested scope. The title specifically references 90 MHz, which should remain part of any validation or comparative study.
Problem statement and research intent
An electrically small 90 MHz loop must fit a handheld PCB while maintaining useful magnetic near field, impedance match and radiation/ohmic efficiency despite strong size and user-loading constraints.
Specific project topic: Design and Optimization of a Handheld Electrically Small 90 MHz PCB Loop Antenna for RFID Tag Applications Using CST Studio Suite. This dedicated page keeps the exact technical topic in the heading, metadata, methodology and internal links rather than sending researchers to a generic software category.
Project objectives and study scope
- Define a compact PCB loop geometry for the 90 MHz target.
- Develop or tune the matching network/feed for the electrically small loop.
- Evaluate magnetic near-field strength and spatial distribution relevant to RFID coupling.
- Quantify conductor/substrate loss and efficiency trade-offs.
- Study detuning caused by enclosure, hand proximity and component tolerances.
Main model / simulation components
Recommended simulation workflow
- Estimate the initial loop inductance and electrical-size constraints.
- Tune geometry and matching elements together instead of optimizing S11 alone.
- Inspect H-field distribution around the intended tag-coupling region.
- Include realistic conductor loss and component Q where possible.
- Add hand/enclosure proximity and sweep the separation.
- Report bandwidth and sensitivity to component/geometry tolerances.
Key outputs and plots to analyze
Available plots depend on the project files and software version. For this topic, the most useful engineering outputs typically include:
- S11 and input impedance
- Matching-network behavior
- Magnetic near-field distribution
- Radiation/total efficiency
- Current distribution on the PCB loop
- Hand/enclosure and tolerance detuning
Possible novelty and further research directions
For a new scholar title, the existing project can be extended without claiming novelty until the proposed change is tested against current literature and validated technically. Practical directions include:
- Adaptive/tunable matching for user-dependent detuning.
- Co-design with RFID tag orientation and coupling region.
- Miniaturization comparison using meanders or ferrite loading.
- Human-hand-aware optimization using multiple grip scenarios.
Where this project can be applied
Files, customization and technical support
Ready project-file packages are typically priced between 100$ and 200$ depending on model complexity and included files. Additional implementation, new research objectives, optimization, assignments, thesis writing, paper preparation, result interpretation and other services are quoted separately after scope review.
Frequently asked questions
What software is used for Design and Optimization of a Handheld Electrically Small 90 MHz PCB Loop Antenna for RFID Tag Applications Using CST Studio Suite?
The project is classified under CST Studio Suite. Confirm the required software release before ordering or requesting modifications.
Can this project be modified for a new research title?
Yes. The project can be reviewed against a new abstract or base paper and extended with additional operating cases, algorithms, parameters, plots or validation steps where technically appropriate.
What results are included?
The video demonstrates the project visually. Exact result plots and source/model files vary by project and should be confirmed before delivery. Additional plots can be implemented as a separate service.
Can this be used for PhD or thesis work?
It can serve as a simulation starting point. Research contribution, novelty, validation and literature positioning must be developed specifically for the scholar's problem statement and cannot be guaranteed from a ready project alone.
